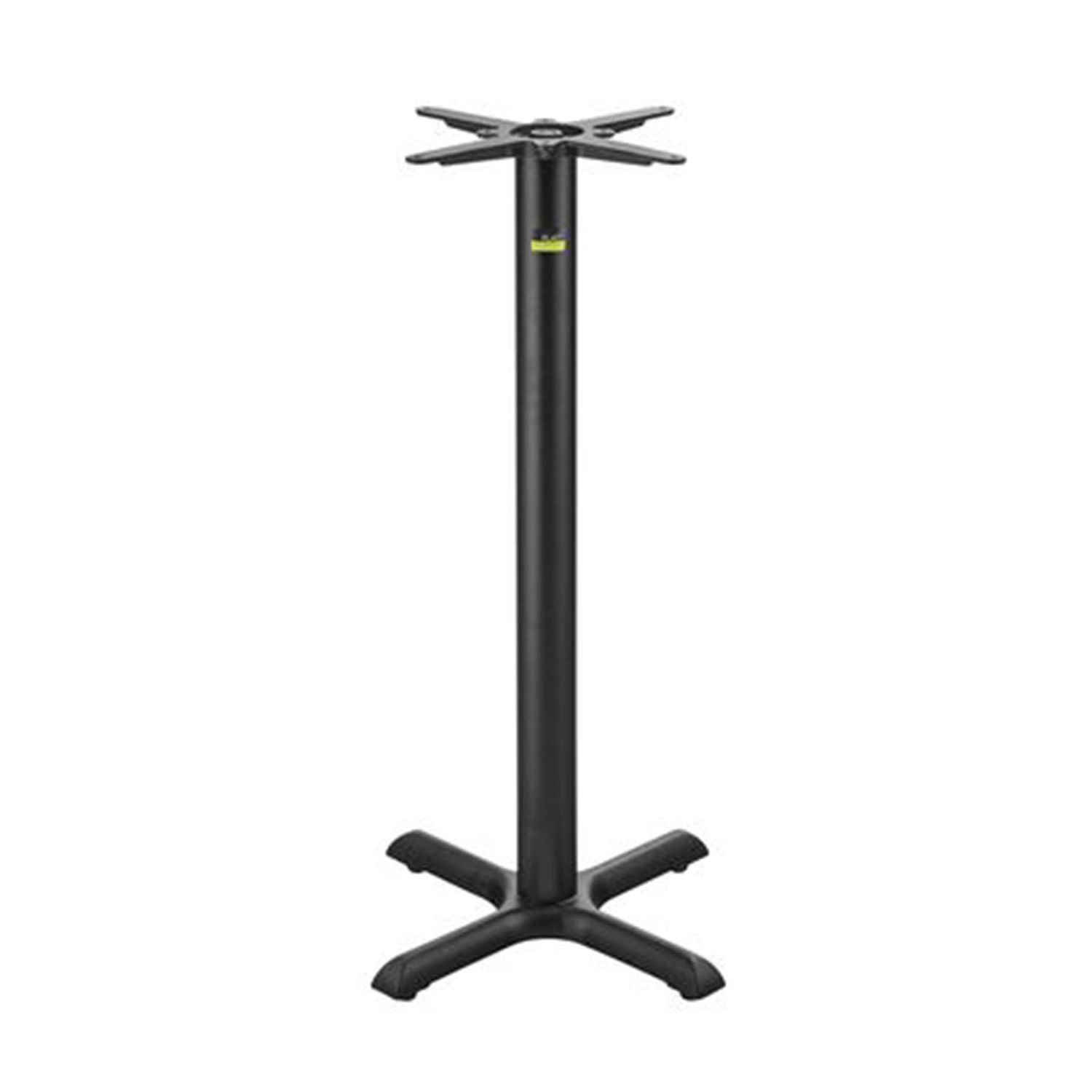

CT2061 Compact Equalizing Base

The FLAT Tech CT2061 is a Compact Equalizing Base built for bar-height tabletops up to 26 inches. It combines a 22-inch cross footprint with patented FLAT® Equalizers to maintain balance and alignment on uneven floors, making it a reliable choice for busy restaurant and bar settings.

At a Glance

Type: Bar-height X-style base. Spread: 22 inch × 22 inch. Column: 3 inch round. Mounting plate: 13 inch × 13 inch. Finish: Textured black. Leveling: FLAT Equalizers. Best for: Compact tabletops up to 26 inches round or 24 inches square.

Why Choose a Compact Equalizing Base

This model provides stable performance in tight dining layouts where space and efficiency both matter. Each Equalizer foot adjusts automatically, keeping the tabletop level and secure even when the floor is slightly uneven. Because the system locks once engaged, staff can reset quickly and maintain smooth service without wobble interruptions.

Size and Compatibility

Base footprint: 22 inches × 22 inches
Column diameter: 3 inches
Mounting plate: 13 inch × 13 inch
Recommended tabletop: up to 26 inch round or 24 inch square

The Compact Equalizing Base supports a range of small-format tops for high-top tables and bar counters. Confirm the underside bolt pattern and use proper fasteners to ensure a snug, balanced installation before placing the table in use.

Use Cases

Bar-height tables in pubs, cafes, and taprooms
Compact layouts where guests dine or gather standing
High-traffic restaurant sections that demand fast resets

For similar compact stability, explore CT2087 or CT4205. To compare larger-format options, see CT2070 or CT2086. For dining-height alternatives, visit the CT2007 model page.

Request More Info Now!

Installation and Setup Tips

Start by positioning the base beneath your tabletop and marking the plate location. Next, drill pilot holes and secure the plate using the appropriate fasteners for your tabletop material. Then, set the table upright and press gently on each side to let the Equalizers adjust to the floor. Confirm all feet make even contact before use.

Pro Tip

When pairing with smaller solid-wood tops, ensure the top plate’s 13 × 13 inch footprint lands over reinforced material for the strongest hold and minimal flex during service.

Technical Specifications

Model: FLAT Tech CT2061 (KX22 EQ)
Height: 40.75 inches (bar height)
Base spread: 22 inch × 22 inch
Top plate: 13 inch × 13 inch
Column: 3 inch round
Material: Cast iron
Finish: Textured black / powdercoat
Leveling system: FLAT Equalizers (manual adjustment)
Recommended top size: Up to 26 inch round or 24 inch square
Warranty: 2 years on Equalizers

Care and Maintenance

Clean with mild detergent and a damp cloth. Avoid corrosive cleaners or harsh solvents. Check Equalizer feet regularly for debris and confirm that all glides adjust smoothly. Light lubrication can be applied to the threads if movement feels restricted.

Featured Answer

Why choose a Compact Equalizing Base for bar-height tables?

A Compact Equalizing Base provides reliable stability for smaller bar-height tabletops, keeping them level and secure so guests enjoy a comfortable, wobble-free experience.

Why Order From TimeWorn Wood

Pair CT2061 with our solid wood restaurant tabletops for a complete solution. We pre-drill mounting patterns to fit your base, hand-finish every piece, and ship nationwide with professional packaging support.
