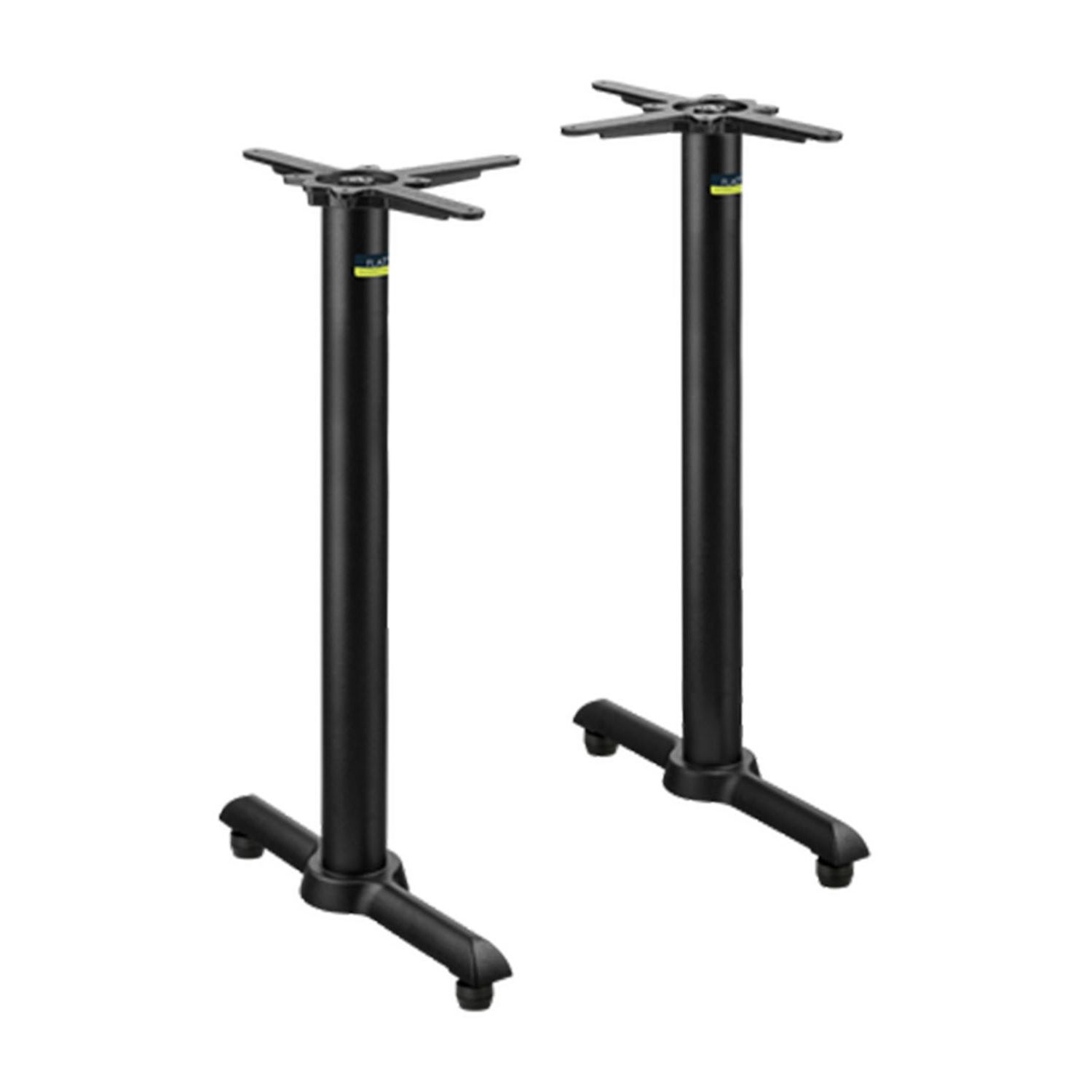

CT2089 Counter-Height Dual Table Base
The FLAT Tech CT2089 is a Counter-Height Dual Table Base built for long rectangular tabletops in commercial dining layouts. This Counter-Height Dual Table Base consists of two 22 inch T-style pedestals that create strong end support and keep tops level through FLAT’s patented Equalizer system. Designed for 33 inch by 77 inch rectangular tops, it delivers consistent stability at a 34.75 inch counter height that pairs perfectly with bar stools or high seating.At a Glance
Type: Counter-height dual table base. Height: 34.75 inches. Footprint: Two 22 inch × 22 inch end bases. Column: 3 inch round. Mounting plate: 13 inch × 13 inch. Material: Cast iron. Finish: Textured black. Leveling system: FLAT Equalizers with hydraulic stabilization. Recommended tabletop: Up to 33 inch × 77 inch rectangular.
Why Choose a Counter-Height Dual Table Base
The CT2089 is made for rectangular tabletops that need extra support without cluttering the floor area. Each end pedestal uses FLAT’s hydraulic Equalizers to self-level on contact, saving time during setup and keeping surfaces flush across grout lines or uneven floors. Its 22 inch end footprints stay compact, preserving guest legroom while maintaining balance across the span. With a cast iron frame and durable black finish, it performs beautifully under high-use conditions in restaurants, lounges, and café-style counters.Tabletop Fit & Mounting Tips
Pair the CT2089 with rectangular or oval tops up to 33 inches by 77 inches. When mounting, pre-drill pilot holes for the 13 inch × 13 inch top plates, making sure your fasteners are fully engaged into the table substrate. After setup, gently press on each corner of the tabletop to activate the Equalizers so the base adjusts to your floor’s contour. You can explore similar-size options like CT2087 or alternative shapes such as CT2018 or CL2642281A depending on layout needs. For sizing help, visit Selecting Restaurant Table Size for quick guidance.Pro Tip
When combining multiple rectangular tables for a banquet line, use the Equalizers to fine-tune height alignment. Press evenly at each corner until seams sit perfectly flush.
Designed for These Spaces
The CT2089 works best in high-top bars, counter-height seating zones, and modern hospitality layouts where tables are frequently rearranged. Because each pedestal moves independently, it’s easy to reset layouts quickly without re-leveling manually. Its compact stance also fits narrow aisles and shared dining areas, maintaining both comfort and structural integrity for larger tops.Request More Info Now!
Installation Overview
Each base ships with a 13 inch top plate that secures to the underside of the tabletop using wood screws or inserts. Assemble both pedestals, position them at the ends of your tabletop, and attach evenly. Once installed, place the table upright and push down slightly on opposite corners to engage the self-leveling system. This locks the Equalizers and ensures immediate stability without extra shims or adjustments.Product Specifications
- Model: FLAT Tech CT2089 (KT22 EQ)
- Height: 34.75 inches (counter height)
- Base footprint: Two 22 inch × 22 inch end bases
- Column diameter: 3 inches
- Mounting plate: 13 inch × 13 inch
- Material: Cast iron with textured black finish
- Recommended top: Up to 33 inch × 77 inch rectangular
- Approximate set weight: 39 pounds
- Technology: FLAT Equalizers with hydraulic self-leveling
Care Recommendations
Clean surfaces regularly using mild soap and water, then dry thoroughly. Avoid strong solvents or acidic products that may dull the finish. Periodically inspect mounting fasteners and Equalizer feet for wear. If the table wobbles after extended use, gently press on the tabletop again to reset the Equalizers. Replacements screw in easily when needed, extending the life of your base.Featured Answer
Which Restaurant table bases work best for rectangular tops?
A Counter-Height Dual Table Base like CT2089 offers superior balance for long rectangular tops. It stays level automatically and maintains steady support throughout service.Why TimeWorn Wood Is The Authority
At TimeWorn Wood, we design and manufacture custom solid wood restaurant tabletops that match perfectly with dependable bases like the CT2089. Every piece is built for commercial use and finished with multi-layer protection that meets SEFA-8 performance standards. From reclaimed to new hardwoods, our craftsmanship ensures each top aligns securely and resists daily wear. We build, finish, and ship directly from our Minnesota facility to your project site.Did You Know?
FLAT Equalizers can be replaced in minutes using a simple screw-in process. This feature extends service life and keeps your tables stable year after year without major maintenance.
